Melt blown Fabric For / Fabric / Non-woven Melt Blown / Polypropylene Slitting Macchine

We build top quality machinery for the converting industry. In converting, “slitting” refers to the process cutting large rolls of material into narrower rolls.

The large roll is typically referred to as the “master” or “parent” roll. A slitter is a machine that converts a master roll into one or more narrower rolls.

Because of economies, master rolls are often made as large as possible. When these master rolls are not the correct size for your requirements. A slitting machine can reduce their width or even their yardage to fit your process.

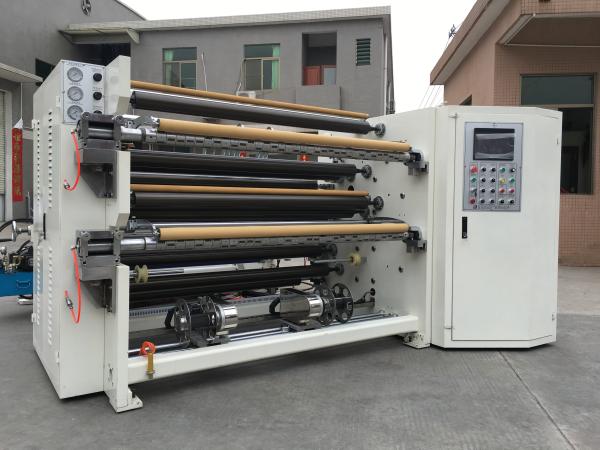

Detail description: suitable for cloth, Melt blown for , Non-woven fabric for slitting and rewinding.

Characteristics:
1. The two rewinding motors cooperate with the main motor to work as three motors motion control, the main motor blocks the unwinding and the rewinding motor control the tension, the tension of the finished product is stable, good rewinding appearance.
2. The rewinding arm adopts the pneumatic coupling control the balance, the contact pressure can be adjusted automatically during rewinding, the contact pressure can be set. This machine can also be equipped with discontinuous rewinding, cut other materials more widely.
3. The operation interface adopts LCD touch screen, various rewinding conditions and working conditions can be set directly on the screen, the control part adopts PLC to control the machine operation, with self-test system.
4. The machine drive uses AC motor and frequency inverter; acceleration and deceleration are stable and fast.
5. Optional with slat type air pressure shaft and pneumatic friction shaft, suitable for more material range, the shaft change is specially designed, can be change at any time.
6. Auxiliary discharge device, the material outfeed pass surface impression roll, material more even, and reduce the noise (suitable for adhesive material)
7. Separate type unwinding stand, for bigger unwinding diameter.

Dongguan Turui Machinery Co., Ltd is located in Changping town Dongguan city Guangdong province, it is a science and technology innovation enterprise who specialized in research and development, production and sales of functional film heat curing coating machines, UV curing coating machines and related films, paper, Al-foil slitting machine. It is dedicated in coating machines and slitting machines research and development, and achieved several country patent technologies, at the same time acquired National High Technology Enterprise in 2015.

Our company adhering to the business philosophy: sincerity, humanity, innovation and using the management method: refines, carefulness, practice to comprehensively improve product functions to satisfy the requirement of the customers. At the same time the company has an efficient team which combines with research, production, sales and service to be the pioneer in the industry, so as to achieve the strategic goal of brand value to better give back to customers and society.
